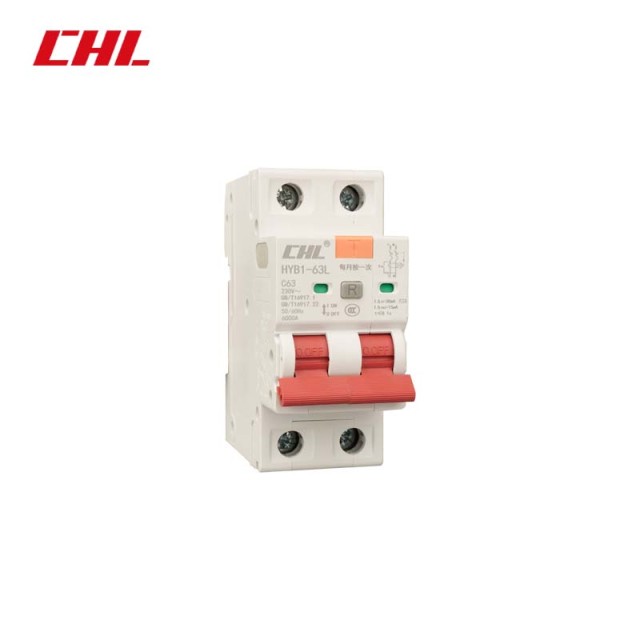

HYB1-63L  Residual Current operated Circuit-breaker with Integral Overcurrent protection

HYB1-63L Residual Current operated Circuit-breaker with Integral Overcurrent protection

Pole number:2P
Shelf rating current:63A
Rated working Voltage Ue (V AC):230/400
Rated current In(A):1、2、3、4、6、10、16、20、25、32、40、50、63
Rated residual action current I△n (mA):10、15、30、50、100、200
Leakage tripping type:A/AC
Rated Insulation Voltage Ui (V):500
Rated Impulse Voltage Uimp (kV):4
Curve type:B、C、D
Release type:Thermomagnetic
Service life:Machinery Actualaverage:20000
Standard value:8500
Electrical Actual average:10000
Standard value:1500

Product Core Advantages

1、High breaking capacity,strong practicability of accessories

2、Combined terminal with touch protection and red and green safty indication,higher safty.

3、Current limting contact system to avoid short circuit current of products and equipment.

4、Shell and some functional parts are imported and exported high ame retardant,high temperature resistance,impact resistant plastics made

5、The appearance is beautiful,the volume is small,the width is only 36mm

6、Leakage function may withdraw,suitable each kind of place.

7、May make the rated leakage action current adjustable

8、L pole N pole to have the overload protection function

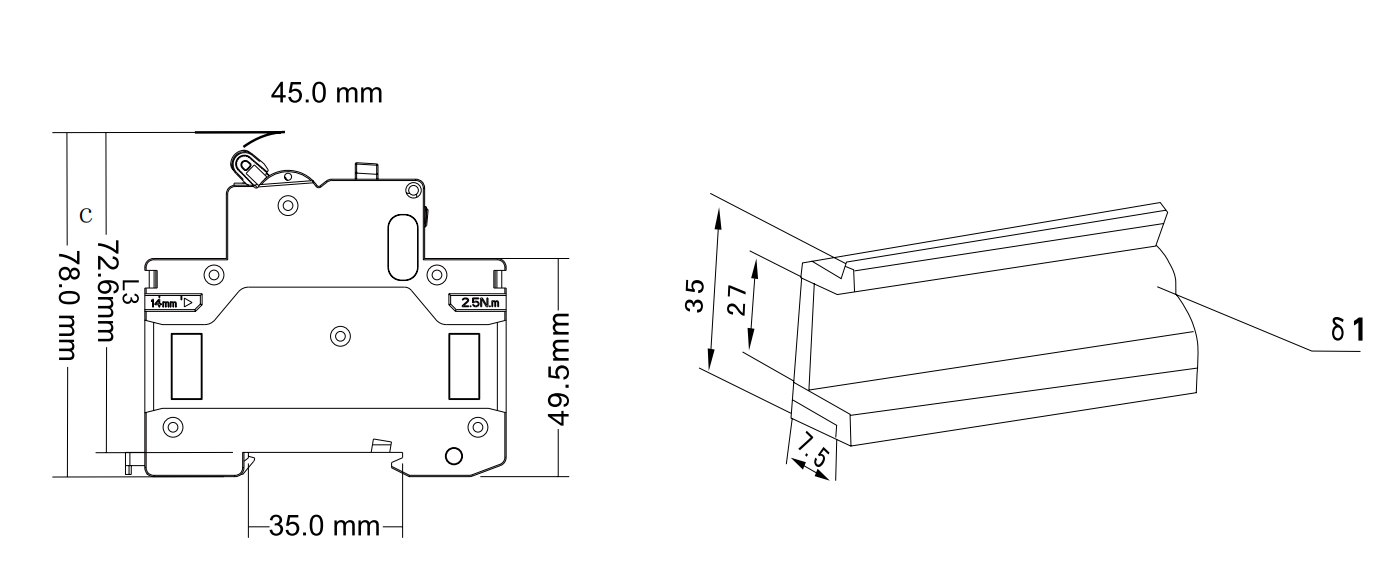

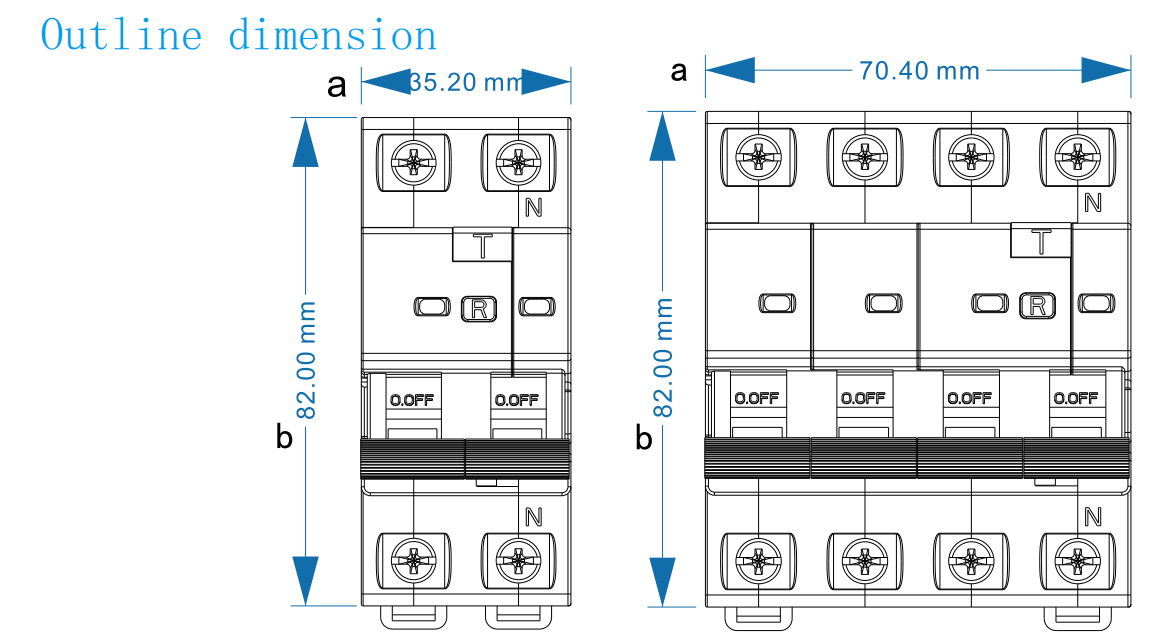

Outline dimension
