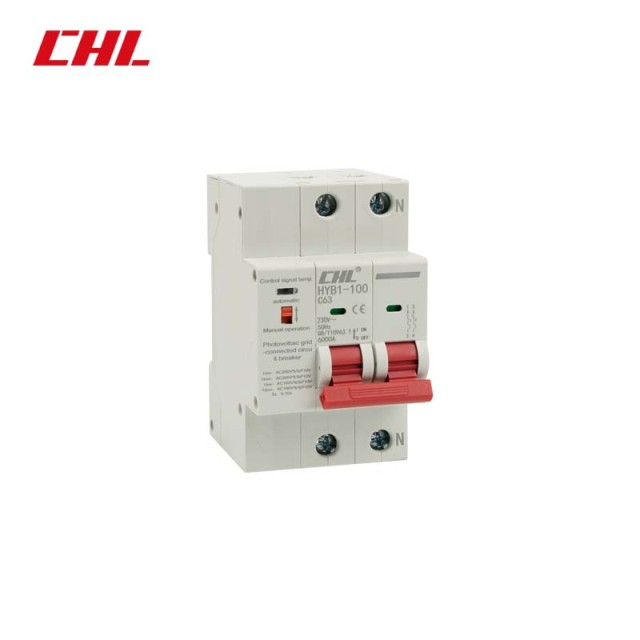

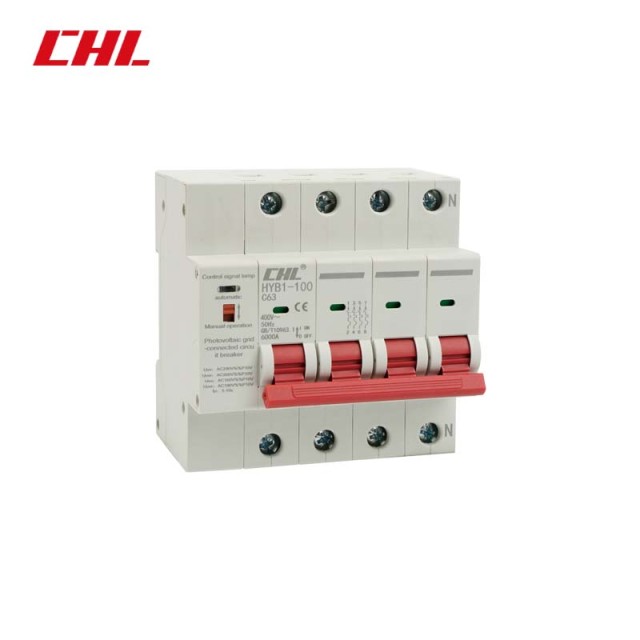

HYB1-100 Photovoltaic grid-connected special circuit breaker

①. It adopts modular structure to form a whole, fixed with 35mm standard rail, which is convenient for quick installation, maintenance or replacement;
②. It has manual/automatic switching function, which is safe and reliable;
③. The circuit breaker has built-in linkage shaft of each pole handle, and the closing synchronization is good;
④. Low standby power consumption, energy saving, low carbon and environmental protection;
⑤. It adopts C65 small circuit breaker platform, energy storage free tripping mechanism, and fast contact closure; the energy storage structure is optimized, the opening and closing synchronization is reliable, and the electrical life is long;
⑥. The overload and short circuit protection functions are integrated with the automatic opening and closing operating mechanism.

Scope of application:
HYB1-100 photovoltaic grid-connected circuit breaker has overvoltage protection, undervoltage protection, phase break protection, power failure trip, automatic closing function after the voltage returns to normal. The product is suitable for AC 50Hz or 60Hz, rated working voltage is AC230V/400V, rated current 6A to 100A in the line, while the line plays the role of overload and short circuit protection, can also be used as the line of infrequent operation conversion. The product realizes automatic grid-connection for unattended distributed photovoltaic power grid. Through such as RS-485, Bluetooth and other communication technology, the circuit breaker in the line can be remotely controlled and automatically switched off.

Conditions of use
① Ambient air temperature: -25℃～+65℃; Extreme working temperature -40℃～+70℃;
② The altitude is generally not more than 2000m;
③ Standard rail TH35～7.5 type installation rail is adopted;
④ Installation conditions: The circuit breaker should generally be installed vertically, the inclination angle shall not exceed 5°, the handle is upward for the power supply, and there should be no significant impact and vibration at the installation place.
