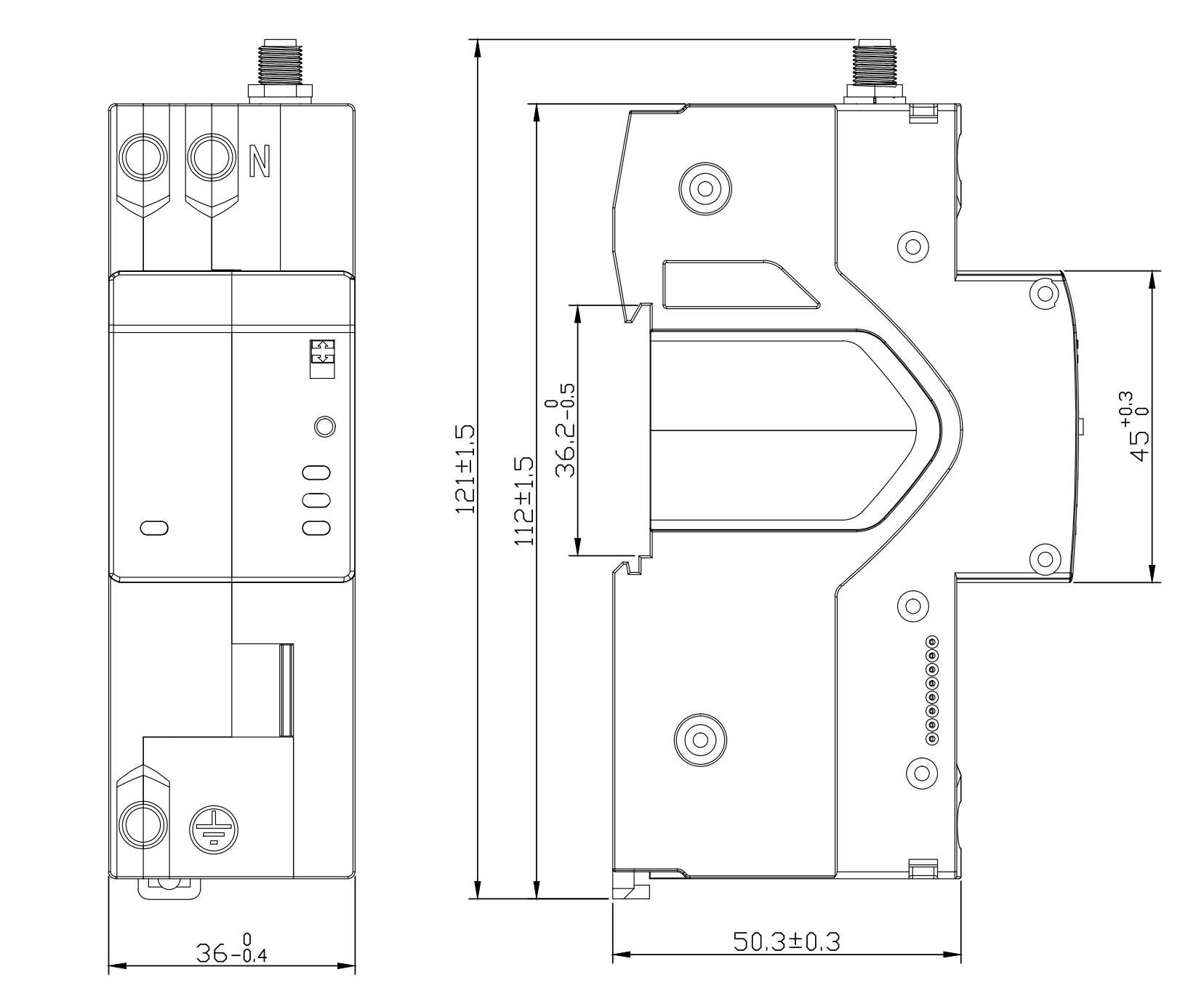

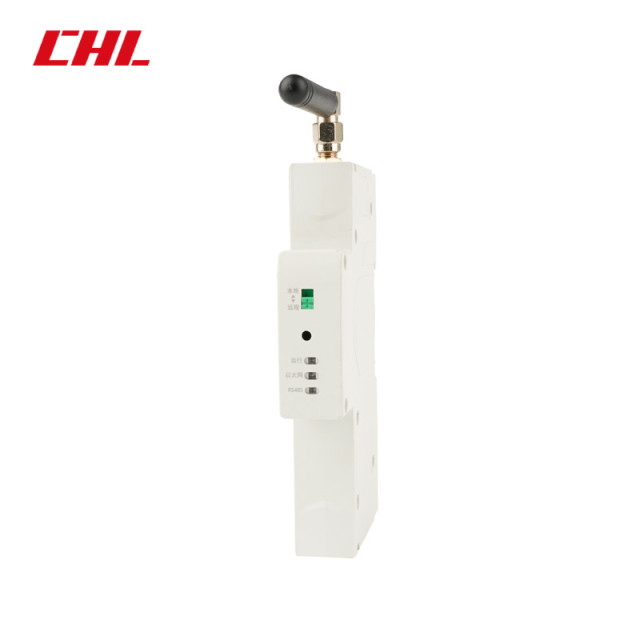

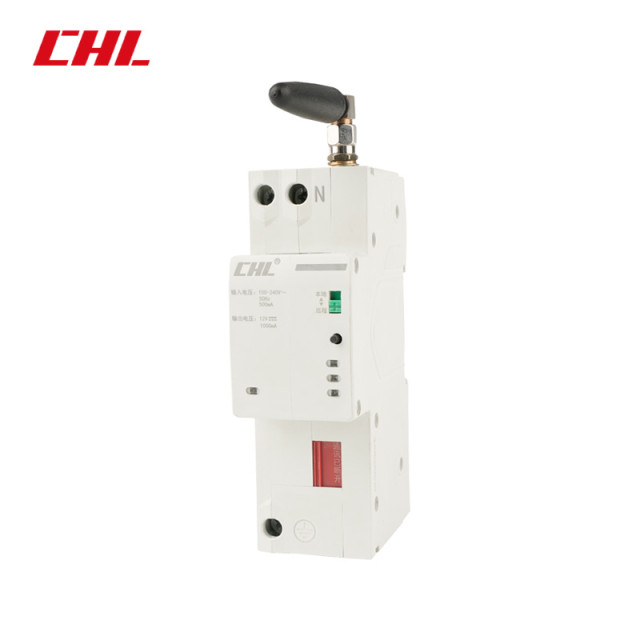

1、Adopting a modular structure with built-in WiFi,only 1P wide,fixed with a 35mm standard guide rail；
2、Equipped with equipment hotspot distribution network,the distribution network method is simple and reliable；
3、It has the function of notifying the server of power outage；
4、The gateway can control up to 19 communication type circuit breaker；
5、Low standby power consumption，energy-saving，and low-carbon environment
1、high level of functionality integration：integrated protection functions including arc fault, leakage, current, voltage, temperature, power, etc
2、Entegrated manual control：joystick control、button control、single-button control through mini-application、voice control、timer control
3、Intelligent Equipment Patrol Management System：flexibly combined and expanded according to needs, including power supply gateway modules and other modules
4、fire fighting linkage：compatible with third-party system integration, and seamless integration with fire protection
5、highly scalable：intelligent system patrol inspection, real-time online monitoring
6、Information Security protection：notifications across PC platform, mini-programs, and SMS
Product poles：2P
Operating frequency：50/60Hz
Operating voltage：AC230V
Input voltage：100-250V AC
Rated output current：3A
Rated output voltage：DC12V
Reading method：4A/WiFi/PLC/LoRa
Communication protocol：MQTT protocol
Lightning protection：4KV
HYB2-80WL Internet of Things Intelligent Circuit Breaker is suitable AC50Hz，with a rated voltage up to 230V/400V and a rated current up to 80A.It serves to provide overload and short-circuit protection in the circuit.Additionally, through IoT communication technology, it can achieve remote control for automatic closing of the circuit breaker to supply power, and automatic tripping to cut off power.
HYB1-100 type electric energy meter external circuit breaker is suitable AC50Hz，with a rated voltage up to 230V/400V and a rated current up to 100A.IT serves to provide overload and short-circuit protection in the circuit It can be used in conjunction with an IC card prepayment electricity meter, enabling remote long distance default automatic switching off power,pay automatic closing power supply.
