Scope of application

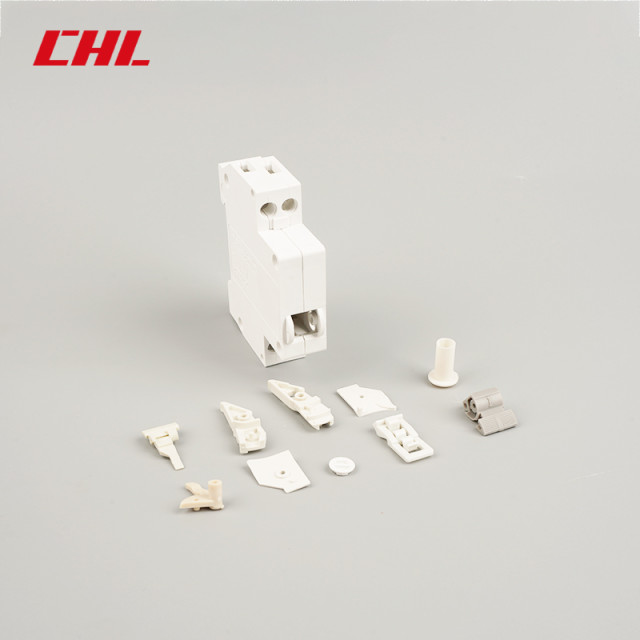

1. RMKL-32 leakage protection circuit breaker is suitable for single-phase residential lines with AC 50Hz or 60Hz and rated voltage up to 230V. It is used for personal electric shock protection. It also protects civil electrical lines from overload and short circuit. This product has small size and high breaking capacity; the zero and live wires are cut off at the same time, and it can still protect people from electric shock when the live wires are reversely connected. This product can also increase the overvoltage according to user requirements.
protection function.
2. This product complies with standards: | EC61009-1, GB16917.1
■ Model number and its meaning
Rack-rated rated current mini circuit breaker with residual current protection
■ Main technical parameters
Rated current (A) pole, rated voltage, frame grade, rated current (A), rated*electricity, rated electric action current (mA), non-action current (mA), rated leakage breaking time, breaking capacity (A>6.10.16 20.25.321+ N230323015<0.1S3000)
Note: The wiring adopts terminal blocks with clamps, and uses hard wires of 1 Omr^ and below.
■ Overcurrent tripping characteristics table
Test current (A) Rated current (In) Specified time Expected results Starting status Remarks
1.13In all values T does not trip in cold state for 1h
1.45In all values t <1h tripping hot electric extinguishing value appreciation within 5s
2.55In all values 1s<t<60s trip cold state
5In all values t^O.Is does not trip, the cold closed auxiliary switch turns on the power
101r>All values t <0.1s trip cold closing auxiliary switch and turn on the power
Note:
1. The filter device S in the RMKL-32 series leakage protection circuit breaker can prevent malfunction tripping caused by instantaneous voltage (line interference from lighting, other equipment) and instantaneous current (such as large capacitive load lines).
2. In addition, the overvoltage tripping value of RMKL electronic leakage and overvoltage protection circuit breaker is 280V+5%
